Storage Temperature Range Minus 40 to 85 Degrees Celsius IOT Gateway with 50 to 60 Hertz Frequency and 1000 Meter Range Enabling Connectivity

Product Description:

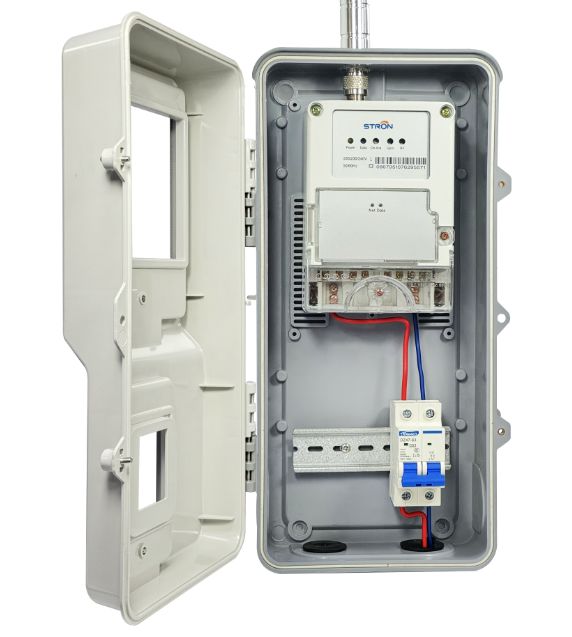

The Stron Smart Data Concentrator Unit STC18-A is specifically designed for Smart Metering applications. It functions as a gateway that connects metering devices with Automatic Meter Reading (AMR) and Advanced Metering Infrastructure (AMI) systems.

The STC18-A enables two-way communication between the metering points and the AMR/AMI systems. It performs a variety of tasks including setting configurations, collecting data, transmitting and storing data, managing meters, executing GPRS-related tasks, and overseeing RF network management.

Additionally, the STC18 leverages LORA-RF technology effectively for downlink communication to smart meters. For uplink communication, it utilizes GPRS, ensuring reliable data transmission between smart meters and the central system.

Features:

The device is fully compliant with the STS standard, ensuring compatibility and reliable operation within standardized energy metering systems.

It supports LORA-RF technology for downlink communication to smart meters, enabling efficient and long-range wireless data transfer.

For uplink communication, the device utilizes GPRS to connect seamlessly with the head-end AMR/AMI system, facilitating smooth data transmission to management platforms.

The system collects comprehensive data, including total energy consumption as well as historical records of daily and monthly usage, providing valuable insights for analysis.

Additionally, it monitors meter parameters, status, and offers real-time data reading capabilities. Any tamper events are automatically recorded and uploaded to ensure security and integrity.

Installation is straightforward and convenient due to its compatibility with BS mounting, reducing setup time and effort.

Technical Parameters:

The Data Concentrate Unit is available in two sizes: 2G and 4G. It operates within a voltage range of AC 160V to 300V, ensuring compatibility with various power supplies. The device supports frequencies between 45Hz and 65Hz, making it suitable for different electrical environments.

This unit is designed to function reliably in a wide range of temperatures, from -25℃ up to 70℃. It requires a humidity level of up to 95%, providing flexibility for various installation conditions. The communication capabilities include GPRS and LORA-RF modules, allowing efficient data transmission over long distances.

Equipped with an RS485 port, the unit supports a baud rate of 115200bps. It can connect with up to 300 meters simultaneously, making it ideal for large-scale applications. The device has a maximum operating current of 500mA, while its current consumption in sleeping mode is as low as 0.2mA, promoting energy efficiency.

The downlink communication range extends up to 1000 meters, facilitating robust connectivity. The compact dimensions of 158mm by 110mm by 71mm enable easy installation. For optimal performance, the unit should be installed in an empty area without obstacles using suspension mounting.

Applications:

The shell of the device is constructed from environmentally friendly materials, ensuring that it is pollution-free, safe, and reliable. This focus on eco-friendly components reflects a commitment to sustainability and user safety.

The exterior design boasts an IP54 protection rating, providing a certain level of waterproof and dustproof capabilities. This makes the device resilient against common environmental factors. Additionally, there are five LED indicators integrated into the device that display the status of the DCU clearly and effectively.

The device is equipped with a 433MHz extended antenna, which significantly enhances both the communication range and the stability of the centralized meter reading system. This feature ensures better connectivity and consistent performance in various conditions.

Internally, the device utilizes a switched-mode power supply for the entire unit, characterized by a wide voltage operation range and reduced weight. Moreover, the GPRS module is housed in a separate box and protected externally by a transparent clamshell cover, thereby increasing its security and durability.

The DCU fully complies with the STS certification standards. It is manufactured in accordance with ISO9001 and ISO14001 quality management and environmental management standards. This compliance guarantees the product’s reliability and stability and effectively extends the service life of the DCU.

Customization:

Stron offers comprehensive product customization services for the STC18-A IoT Gateway, designed to meet diverse application needs. Originating from China, this gateway operates at a voltage of 5V and complies with the STS standard, ensuring reliable performance in various environments. With a robust storage temperature range of -40℃ to 85℃, the STC18-A is built to withstand extreme conditions.

Featuring a maximum transmitting power of 20dBm, this IoT Gateway supports GPRS connectivity for seamless automated meter reading (AMR) solutions. The device acts as a Data Concentrator Unit (DCU), efficiently collecting and transmitting data from multiple meters. The gateway is optimized for power consumption, operating at 500mA, making it suitable for continuous operation in smart metering networks.

Customization options include tailored firmware, specific communication protocols, and hardware modifications to suit unique deployment scenarios. Stron’s STC18-A IoT Gateway customization services ensure that your automated meter reading projects are equipped with reliable, efficient, and scalable solutions.
